Thermal oil · YDW series

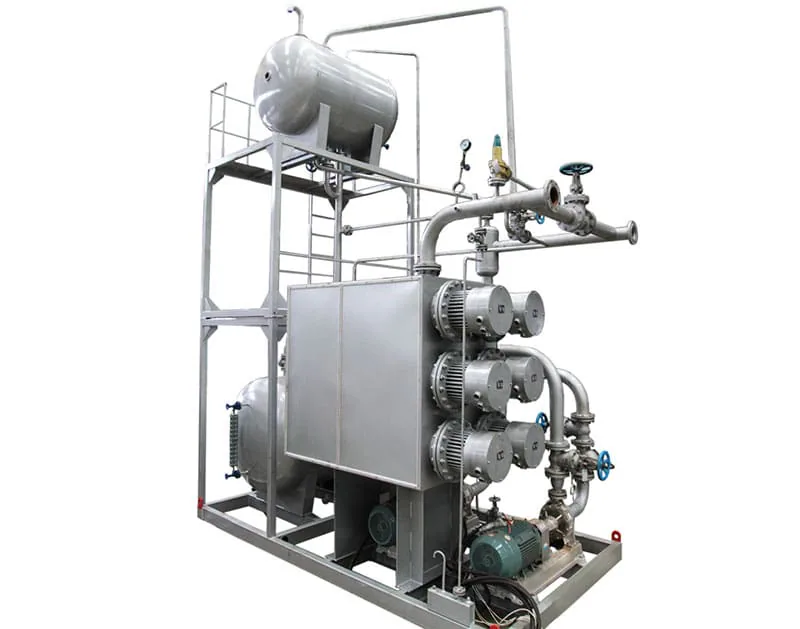

YDW Electric Thermal Oil Heater

Name: YDW Electric Thermal Oil Heater
Brand: Wilford

Thermal oil for electric.

Request a quotation →Parameters

Output: 24–1440 kW
Working pressure: 0.22–0.8 MPa
Fuel: Electric

Design

Thermal oil for electric, 24–1440 kW at 0.22–0.8 MPa.

Medium: Thermal oil
Fuel: Electric
Output: 24–1440 kW
Working pressure: 0.22–0.8 MPa

For the electric thermal oil heater, the heat is generated and transmitted by the electric heating element immersed in the heat transfer oil, and the heat transfer oil is used as the medium, and the circulating heat pump is used to force the heat transfer oil to perform liquid phase circulation. Transfer heat to one or more heating equipment, after unloading with the heat equipment, re-pass the circulation pump, return to the heater, and then absorb the heat and transfer it to the heating equipment. Repeatedly, the continuous transfer of heat is achieved, and the temperature of the heated object is raised to meet the heating process requirements.

Features

Swipe →

01 / 04
Electric heating thermal oil heater is a new type of special industrial boiler that is safe, energy efficient, low pressure (normal pressure or lower gas pressure) and can provide high temperature heat energy.
02 / 04
The thermal oil is used as a heat carrier, and the heat carrier is circulated by the hot oil pump to transfer heat to the heat device.
03 / 04

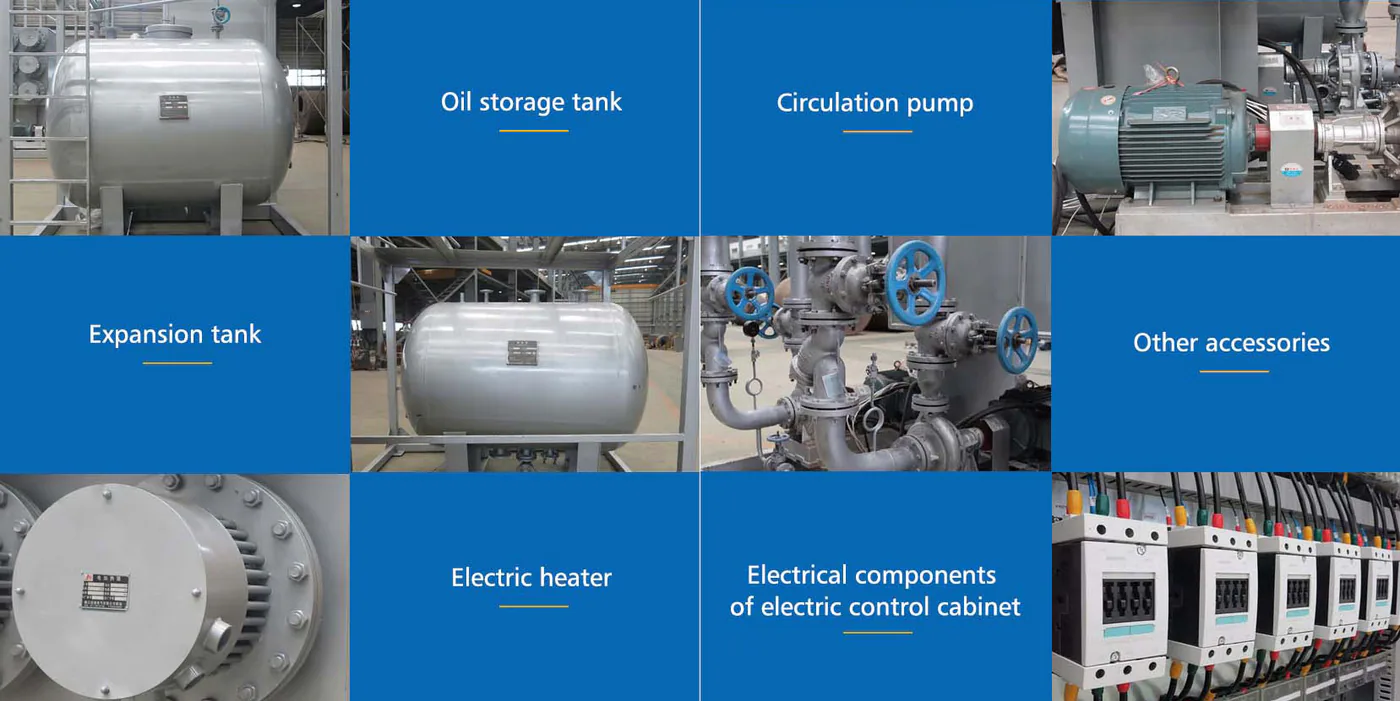

The electric heating thermal oil system is combined into an armor by an explosion-proof electric heater, an organic heat carrier furnace, a hot oil pump, an expansion tank, and the like.
04 / 04
The user only needs to access the power supply, the inlet and outlet pipes of the medium and some electrical interfaces to use.

Gallery

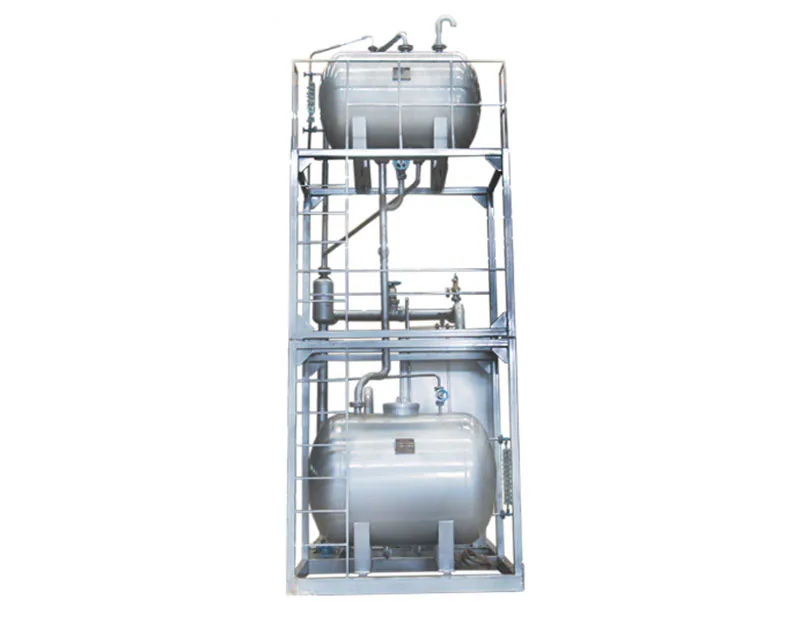

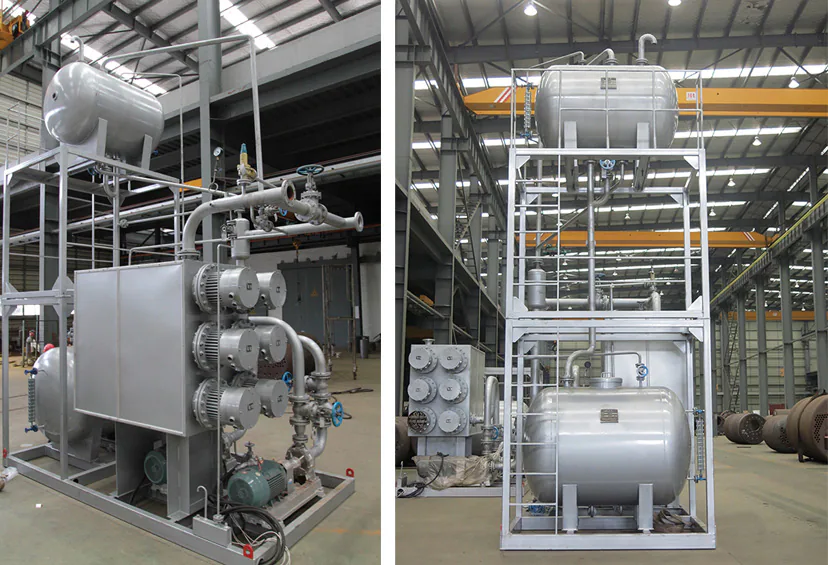

YDW Electric Thermal Oil Heater

5 images

Technical parameters

YDW series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

Technical Parameters Of Electric Thermal Oil Boiler

parameter name	Unit	YDW-24	YDW-36	YDW-54	YDW-72	YDW-120	YDW-180	YDW-240	YDW-270	YDW-360	YDW-1000	YDW-1440
Rated thermal power	kw	24	36	54	72	120	180	240	270	360	1000	1440
oil capacity	m³	0.015	0.023	0.03	0.081	0.1	0.14	0.18	0.2	0.25	0.85	1.3
Working pressure	mpa	0.22	0.22	0.22	0.32	0.3	0.4	0.4	0.4	0.4	0.7	0.8
Design pressure	mpa	0.6	0.6	0.6	0.6	0.6	0.7	0.7	0.7	0.7	1	1
Whole installed capacity	kw	28	40	60	80	130	190	250	280	390	1050	1550
Medium highest temperature	℃	320	320	320	320	320	320	320	320	391	320	320
Component power per group	kw	12	12	18	24	30	30	30	30	392	40	40
Medium circulation volume	m³/h	8	8	8	12.5	20	20	40	40	40	100	100
DN of oil outlet	mm	50	50	50	50	65	65	65	65	80	125	125
Voltage	V	380V
External dimension	mm	18006001650	18008501650	18008501650	190012001800	220012002200	220012002200	220012002200	220015002600	220015002600	400022002600	450023002920
