WDR Horizontal Electric Steam Boiler

Name: WDR Horizontal Electric Steam Boiler
Brand: Wilford

Steam for electric — 8 standard sizes.

Request a quotation →Parameters

Output: 1–10 t/h
Working pressure: 1–1.25 MPa
Standard sizes: 8
Fuel: Electric

Design

The WDR series are powerful horizontal steam boilers.

Medium: Steam
Fuel: Electric
Output: 1–10 t/h
Working pressure: 1–1.25 MPa
Standard sizes: 8 · WDR1 – WDR10
Rated voltage: 3N AC 50Hz 380V
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

The boiler furnace is separated from electrical control cabinet to avoid the aging of electrical heating element. Electrical heating tube with high quality with normal service life around 20,000 hours. Thermal efficiency is nearly 99%,quiet operation, clean, environment friendly, no atmospheric emissions of NOx (nitrogen oxides). Boiler running with PLC control system, free button operation, free signal light, touch-screen panel, Chinese& English, the man-machine dialogue, authorized operation, real-time information, automatically turning pages.

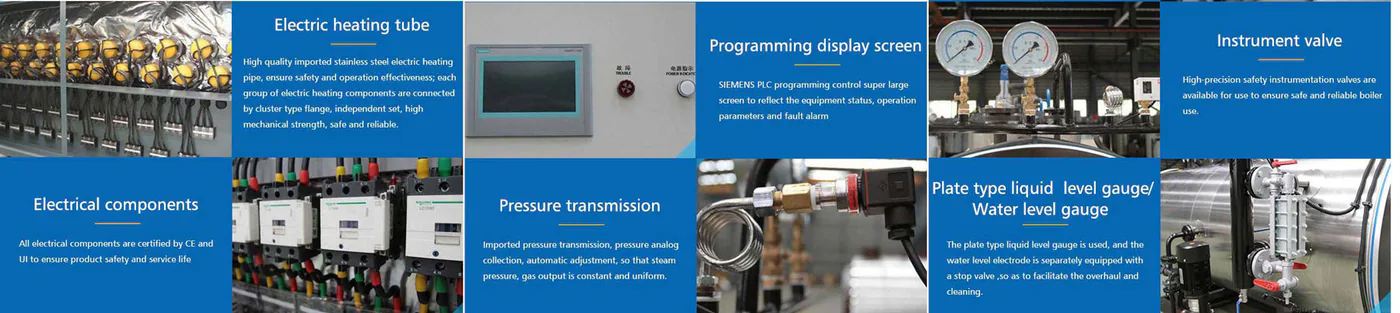

Features

Swipe →

01 / 05
All electrical components with CE and UL marks –ensure safety and long life service.
02 / 05
Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.
03 / 05
Large steam room, super quality steam.
04 / 05
Boiler and control cabinet is seperated, so control components could away from heat source. One set or many sets could together for multi-usage.
05 / 05
PLC microcomputer programmable control and display screen. Automatic water outlet temperature control settings. Screen displays equipment operating parameters and fault alarm.

Gallery

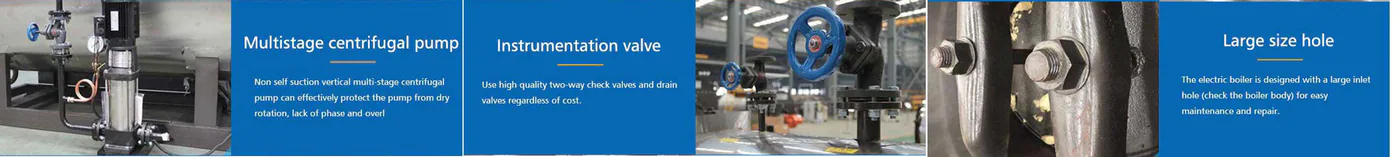

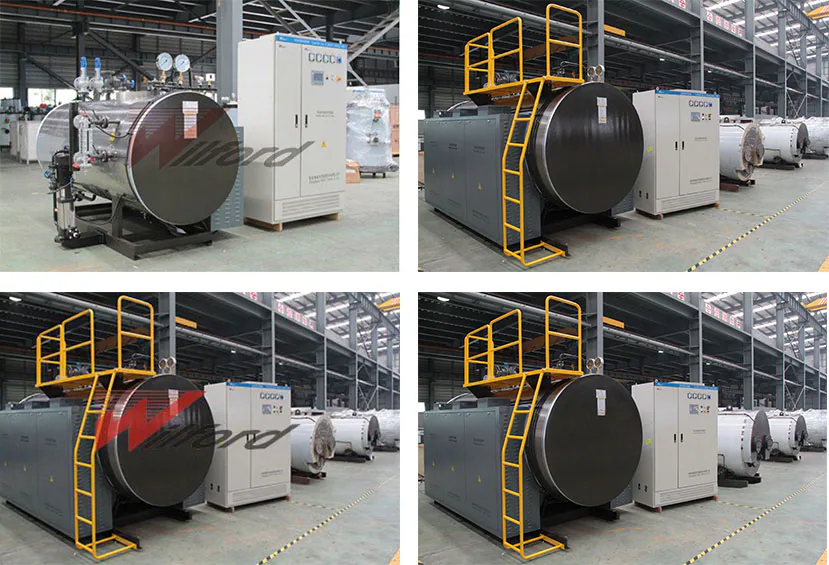

WDR Horizontal Electric Steam Boiler

6 images

Technical parameters

WDR series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

Model			WDR1	WDR1.5	WDR2	WDR3	WDR4	WDR6	WDR8	WDR10
Project		Unit	WDR1	WDR1.5	WDR2	WDR3	WDR4	WDR6	WDR8	WDR10
Rated evaporation		T/h	1	1.5	2	3	4	6	8	10
Rated working pressure		MPa	1.0	1.0	1.0	1.25	1.25	1.25	1.25	1.25
Saturated steam temperature		℃	184	184	184	193	193	193	193	193
Input Power		KW	720	1080	1440	2160	2880	4320	5760	7200
Input current		A	1080	1620	2160	3240	4320	6480	8640	10800
Rated voltage		V	380V	380V	380V	380V	380V	380V	380V	380V

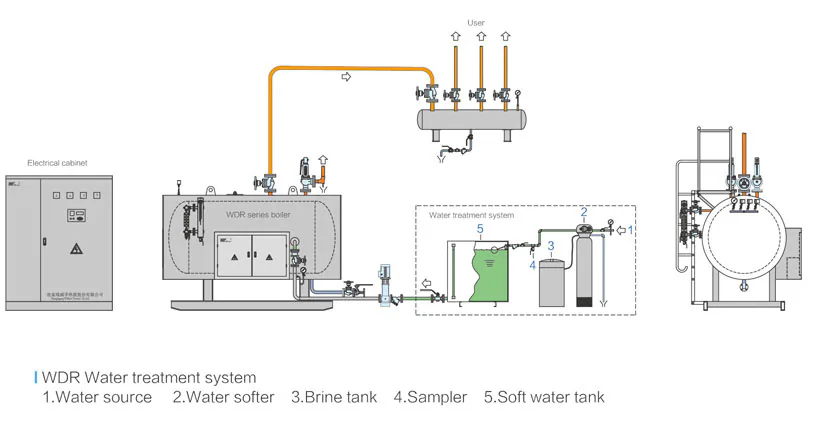

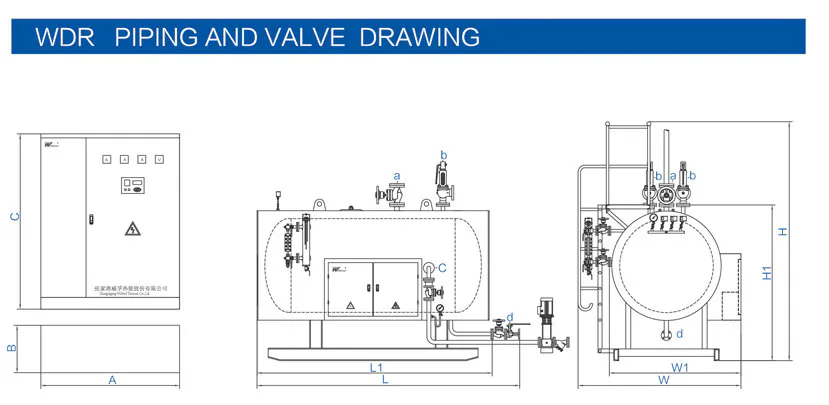

a Main steam valve diameter		DN	40	65	80	80	100	125	150	150
b Safety valve diameter		DN	2×40	2×40	2×40	2×40	2×50	2×50	50+80	2×80
c Inlet diameter		DN	25	25	25	40	40	40	40	50
d Blowoff Valve diameter		DN	40	40	40	50	50	50	50	50
Overall size	L	mm	2600	3000	3200	3950	4100	4500	5800	7200
	L1	mm	2400	2700	2880	3300	3550	4300	5400	6500
	W	mm	1900	2000	2000	2300	2300	2300	2300	2300
	W1	mm	1600	1880	1880	2260	2260	2260	2260	2260
	H	mm	2100	2500	2500	2650	2880	2880	2980	2980
	H1	mm	1800	2100	2100	2100	2200	2300	2300	2300
Electrical control cabinet size	A	mm	1200	1800	2200	2200 (2pcs)	2200 (2pcs)	2200 (3pcs)	2200 (4pcs)	2200 (5pcs)
	B	mm	600	600	600	600	600	600	600	600
	C	mm	2000	2200	2200	2200	2200	2200	2200	2200
Weight		T	1.8/2.2	2.2/2.7	2.8/3.3	3.5/4.1	4.5/5.2	6.8/7.2	7.8/9.4	9.4/11.5
