WFD Inspection-Free Electric Steam Generator

Name: WFD Inspection-Free Electric Steam Generator
Brand: Wilford

Steam for electric — 7 standard sizes.

Request a quotation →Parameters

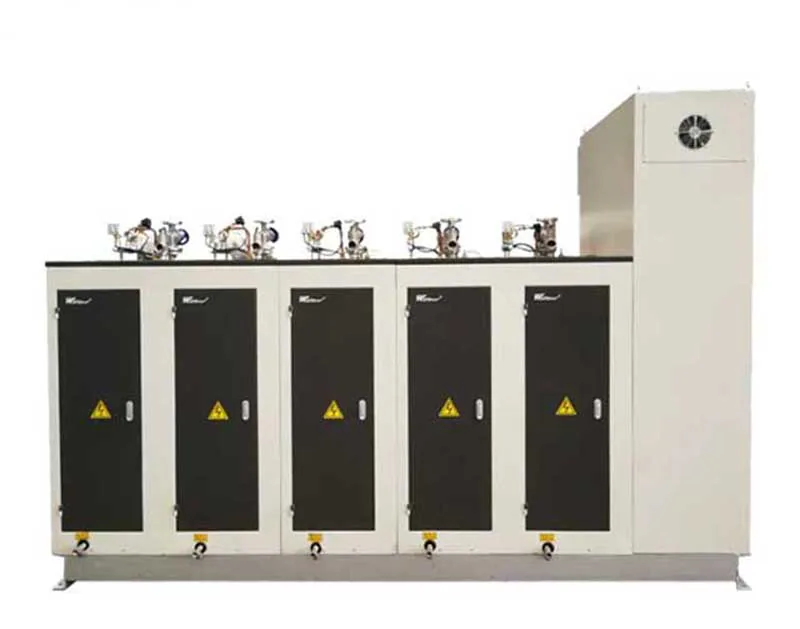

WFD Inspection-Free Electric Steam Generator

Output: 0.15–1.2 t/h
Working pressure: 0.7 MPa
Standard sizes: 7
Fuel: Electric

Design

Safety furnace liner structure, built-in high-efficiency steam-water separation device.

Medium: Steam
Fuel: Electric
Output: 0.15–1.2 t/h
Working pressure: 0.7 MPa
Standard sizes: 7
Rated voltage: 3N AC 50Hz 380V
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc

Every standard size of the WFD series is listed in the parameter table below with output, pressure, fuel consumption, connections, dimensions and weight. Send your required output, pressure and fuel and we return a model selection, drawings and a quotation.

Features

Swipe →

01 / 06
Adopt European-brand heating tube, Incoloy 800 stainless steel material (performance far exceeds 316L material), with superior anti-scale and corrosion resistance.
02 / 06
Adopt French Schneider brand contactor, high efficiency, sensitive action, long life, and low noise.
03 / 06
Adopt Siemens circuit breaker.
04 / 06
Use German WIKA pressure gauge, high precision, reliable and stable operation.
05 / 06
The equipment is fully automatic and unattended. The operation is simple; the operating status is shown on a color LCD display, with fault indication.
06 / 06
Optional additional functions such as remote start and stop, pure-water and clean models.

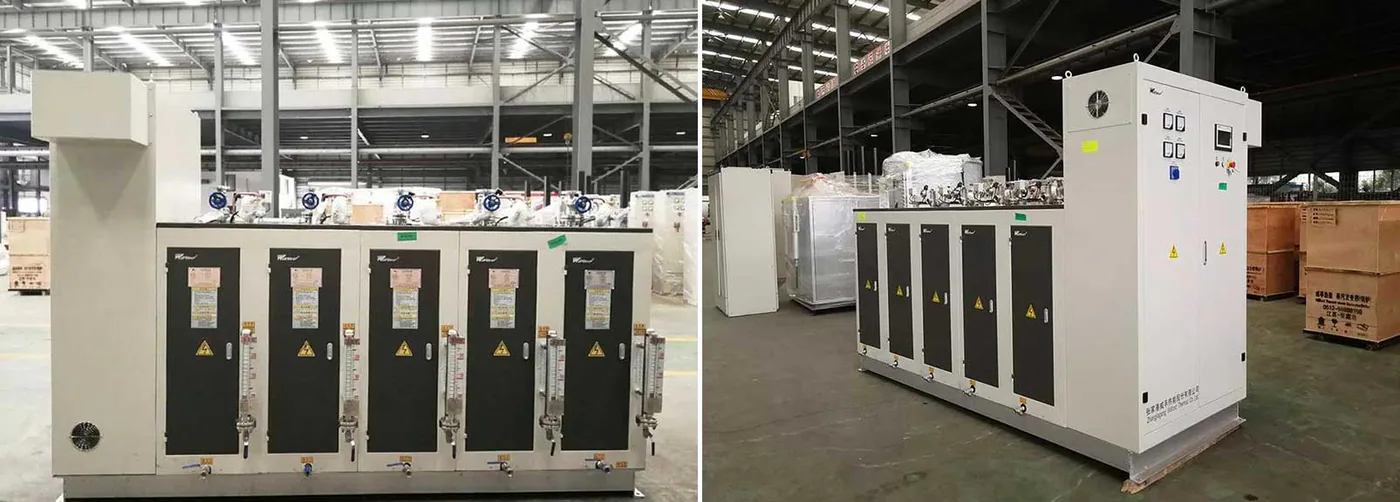

Gallery

WFD Inspection-Free Electric Steam Generator

2 images

Technical parameters

WFD series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

WFD National Inspection-free Electrical Steam Generator

Type			WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Project		Unit	WDR0.15-0.7	WDR0.2-0.7	WFD0.4-0.7	WFD0.6-0.7	WFD0.8-0.7	WFD1.0-0.7	WFD1.2-0.7
Rated evaporation		t/h	0.15	0.2	0.4	0.6	0.8	1	1.2
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170
Input Power		KW	108	144	288	432	576	720.00	864.00
Input current		A	144	216	435	650	865.00	1080.00	1300
Rated pressure		V	380V
Power×Group		KW×P	36KW*3	36KW*4	36KW*8	36KW*12	36KW*16	36KW*20	36KW*24
a Main steam valve diameter		DN	25	25	40	40	50	50	65
b Safety valve diameter		DN	25	25	25*2	25*3	25*4	25*5	25*6
c Inlet diameter		DN	15	15	25	25	25	40	40
d Blowoff Valve diameter		DN	25	25	25	25	25	25	25
Overall size	L	mm	1500	1500	1500	1500	1500	1500	1500
	W	mm	700	700	1400	2100	2800	3500	4200
	H	mm	1900	1900	1900	1900	1900	1900	1900
Weight		T	200	200	400	650	820	1100	1300
