Hot water · CWDR series

CWDR Horizontal Electric Hot Water Boiler

Name: CWDR Horizontal Electric Hot Water Boiler
Brand: Wilford

Hot water for electric — 17 standard sizes.

Request a quotation →Parameters

CWDR Horizontal Electric Hot Water Boiler

Output: 0.7–7 MW
Working pressure: Atmospheric
Standard sizes: 17
Fuel: Electric

Design

No noise, no pollution, clean and sanitary, it is a truly green and environmentally friendly product;

Medium: Hot water
Fuel: Electric
Output: 0.7–7 MW
Working pressure: Atmospheric
Standard sizes: 17 · CWDR 0.7 – CWDR 7

Use high-quality stainless steel heating tubes or imported alloy steel electric heating tubes to ensure safe and long-term operation of the boiler.

9: According to user requirements, thermal energy storage equipment can be designed using nighttime peak and valley electricity.

Address:9na Calle Poniente y 4ta Ave. Norte # 2-14C, Santa Tecla, La Libertad EI Salvador

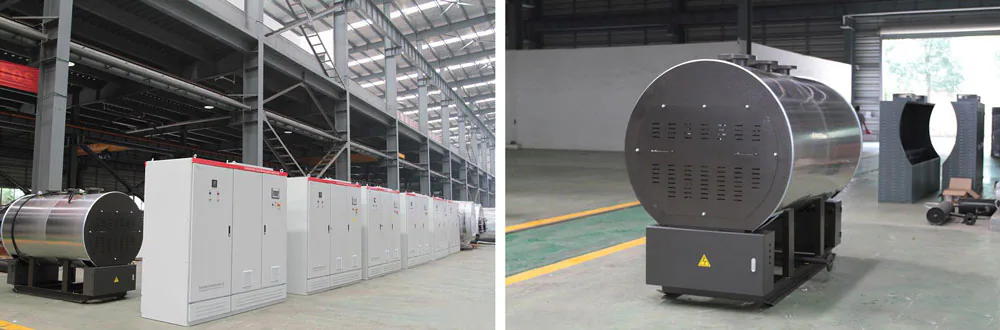

Gallery

CWDR Horizontal Electric Hot Water Boiler

2 images

Technical parameters

CWDR series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

Size			CWDR 0.7-85/60	CWDR 0.8-85/60	CWDR 0.9-85/60	CWDR 1.0-85/60	CWDR 1.05-85/60	CWDR 1.2-85/60	CWDR 1.4-85/60	CWDR 1.5-85/60	CWDR 1.6-85/60	CWDR 1.8-85/60	CWDR 2-85/60	CWDR 2.1-85/60	CWDR 2.5-85/60	CWDR 2.8-85/60	CWDR 4.2-85/60	CWDR 5.6-85/60	CWDR 7-85/60
Project		Unit	CWDR 0.7-85/60	CWDR 0.8-85/60	CWDR 0.9-85/60	CWDR 1.0-85/60	CWDR 1.05-85/60	CWDR 1.2-85/60	CWDR 1.4-85/60	CWDR 1.5-85/60	CWDR 1.6-85/60	CWDR 1.8-85/60	CWDR 2-85/60	CWDR 2.1-85/60	CWDR 2.5-85/60	CWDR 2.8-85/60	CWDR 4.2-85/60	CWDR 5.6-85/60	CWDR 7-85/60
Rated heating capacity		MW	0.7	0.8	0.9	1	1.05	1.2	1.4	1.5	1.6	1.8	2	2.1	2.5	2.8	4.2	5.6	7
Total heating capacity		10 4 kcal	58.3	66.7	75.0	83.3	87.5	100.0	116.7	125.0	133.3	150.0	166.7	175.0	208.3	233.3	350.0	466.7	583.3
Rated working pressure		MPa	Ordinary pressure
Input Power		KW	700	800	900	1000	1050	1200	1400	1500	1600	1800	2000	2100	2500	2800	4200	5600	7000
Input current		A	1050	1200	1350	1500	1575	1800	2100	2250	2400	2700	3000	3150	3750	4200	6300	8400	10500
Rated Voltage		V	3PN380 50Hz
a Water outlet diameter		DN	100	100	100	100	100	150	150	150	150	150	150	150	200	200	200	200	250
b Water inlet diameter		DN	100	100	100	100	100	150	150	150	150	150	150	150	200	200	200	200	250
c Water return diameter		DN	100	100	100	100	100	150	150	150	150	150	150	150	200	200	200	200	250
d Blowoff Valve diameter		DN	40	40	40	40	40	40	50	50	50	50	50	50	50	50	50	50	50
e Expansion tube diameter		DN	100	100	100	100	100	150	150	150	150	150	150	150	200	200	200	200	250
Overall size	Length	L mm	2100	2100	2100	2100	2100	2100	2400	2400	2400	2800	2800	2800	2800	2800	4300	5400	6500
	Width	W mm	1250	1250	1250	1250	1250	1250	1350	1350	1350	1650	1650	1650	1650	1650	2260	2260	2260
	Height	H mm	1900	1900	1900	1900	1900	1900	2100	2100	2100	2300	2300	2300	2300	2300	2300	2300	2300
Specifications of single electric control box		A	1200	1200	1200	1500	2000	2000	2200	2200	1200 (2)	1500 (2)	2000 (2)	2200 (2)	2200 (2)	2000 (3)	2000 (4)	2000 (5)	2000 (7)
		B	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600	600
		C	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2000	2200	2200	2200	2200	2200	2200
Weight		T	1.3/1.8	1.5/2.0	1.6/2.3	1.8/2.4	1.9/2.4	2.0/2.5	2.2/2.9	2.3/3.0	2.4/3.2	2.6/3.6	2.8/3.8	3.0/4.1	3.3/4.4	3.5/5.2	4.8/6.2	5.8/7.7	7.4/9.8
