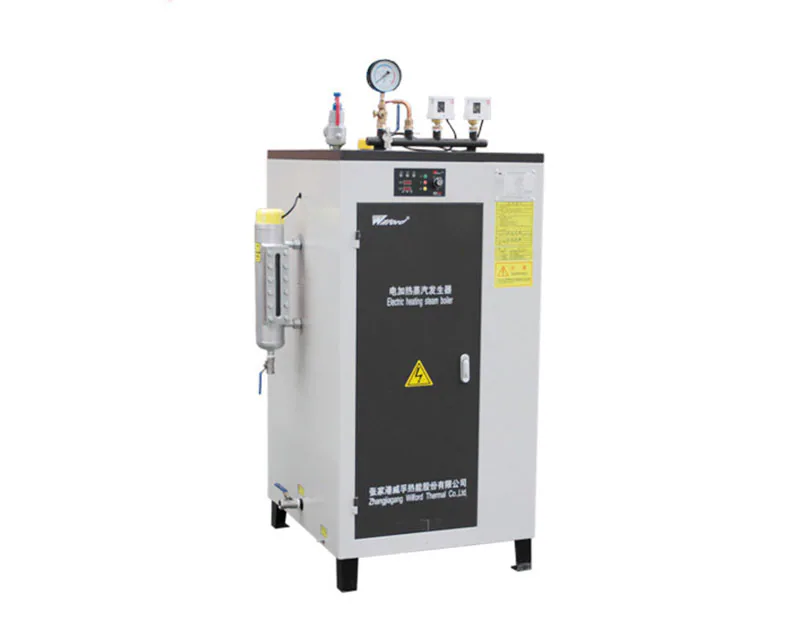

LDR Inspection-Free Electric Steam Generator

Name: LDR Inspection-Free Electric Steam Generator
Brand: Wilford

Steam for electric — 9 standard sizes.

Request a quotation →Parameters

LDR Inspection-Free Electric Steam Generator

Output: 12–125 kg/h
Working pressure: 0.7 MPa
Standard sizes: 9
Fuel: Electric

Design

Small electric steam boilers with compact size, automatic water feeding pumps inside, fully automatic water level and pressure control, could continuous work.

Medium: Steam
Fuel: Electric
Output: 12–125 kg/h
Working pressure: 0.7 MPa
Standard sizes: 9 · LDR0.012 – LDR0.125
Rated voltage: 3N AC 50Hz 380V
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

According to article 99 of 《Regulations on safety supervision of special equipment 》and TSG G0001《Boiler safety technology supervision regulation 》,above steam boilers capacity less than 30L,which product safety performance not belong to category of mandatory supervision and inspection –《Measures for the supervision and administration of boiler pressure vessel manufacturing 》and no need local supervision and inspection.

Features

Swipe →

01 / 04

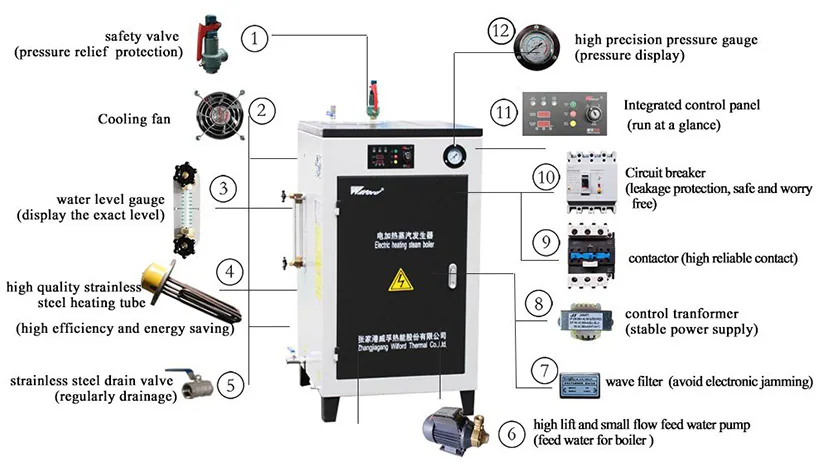

Small electric steam boilers with compact size, automatic water feeding pumps inside, fuly automatic water level and pressure control, could continuous work.
02 / 04
Boiler water capacity less than 30 liters, avoid complicated approval procedures of annual evaluation.
03 / 04
Steam output valves could connect both hard tubes and high temperature resistant steam hose, flexible, make full usage of space.
04 / 04
Smart size, convenient to be moved, installation and usage.

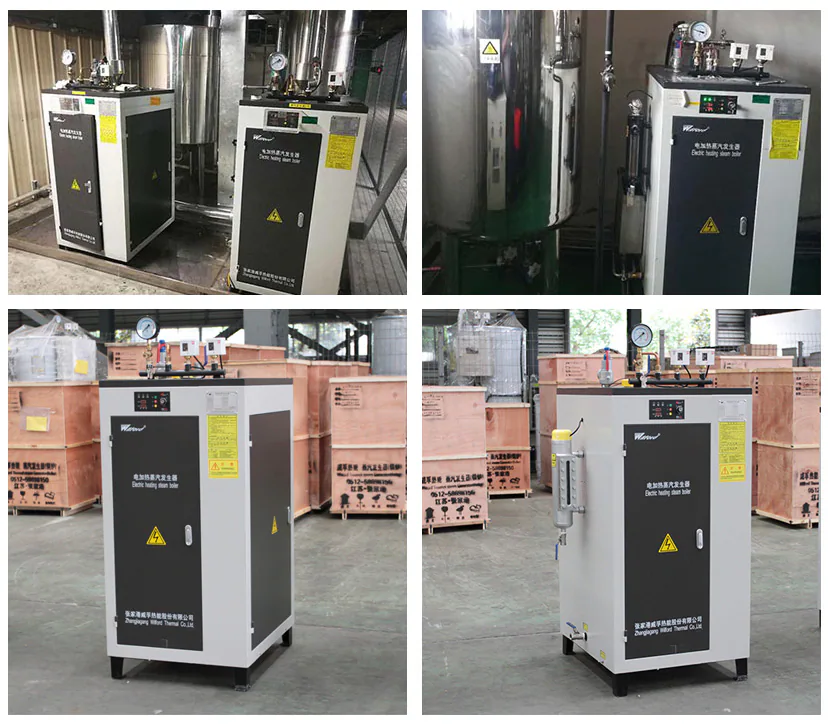

Gallery

LDR Inspection-Free Electric Steam Generator

6 images

Technical parameters

LDR series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LDR National Inspection-free Electrical Steam Generator

Model			LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7	LDR0.125-0.7
Project		UNIT	LDR0.012-0.7	LDR0.016-0.7	LDR0.025-0.7	LDR0.035-0.7	LDR0.05-0.7	LDR0.06-0.7	LDR0.08-0.7	LDR0.1-0.7	LDR0.125-0.7
Rated evaporation		Kg/h	12	16	25	35	50	60	80	100	125
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170	170	170
Input power		KW	9	12	18	27	36	40	54	72	90
Input current		A	14	18	27	41	54	60	81	108	135
Rated voltage		V	3N AC 50Hz 380V
aMain steam valve diameter		DN	15	15	15	15	15	15	15	25	25
bSafety valve diameter		DN	15	15	15	15	15	15	15	25	25
cInlet diameter		DN	15	15	15	15	15	15	15	15	15
dBlowoff valve diameter		DN	15	15	15	15	15	15	15	20	20

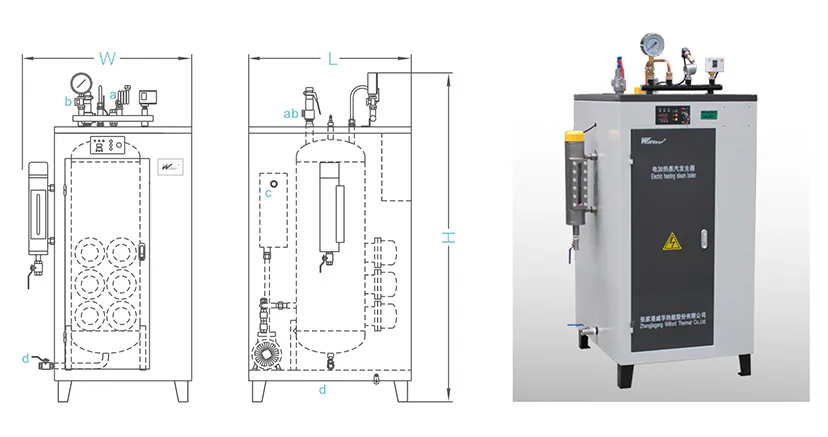

Overall size	L	mm	540	540	540	540	650	650	650	800	800
	W	mm	650	650	650	650	660	660	660	800	800
	H	mm	980	980	1100	1100	1380	1380	1380	1580	1580
Weight		kg	95	95	105	105	130	130	135	195	195
