Steam · LDR series

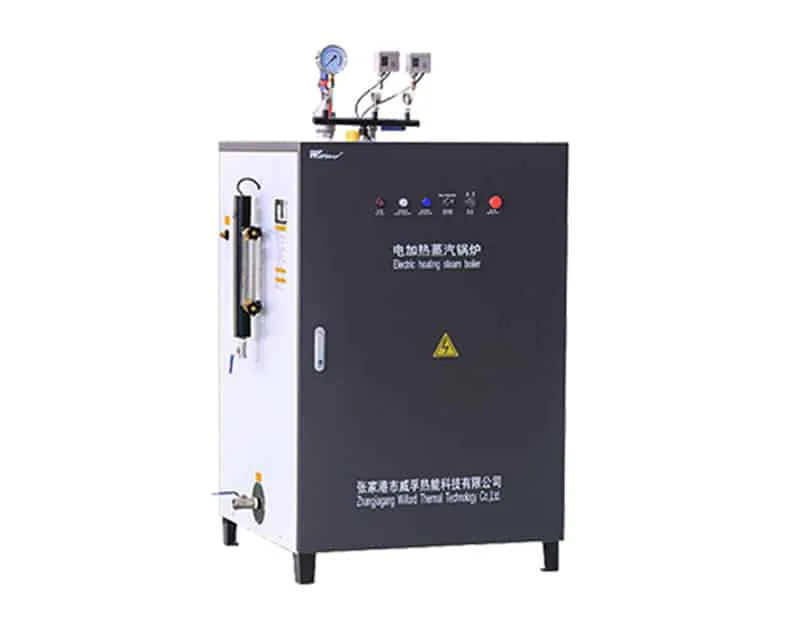

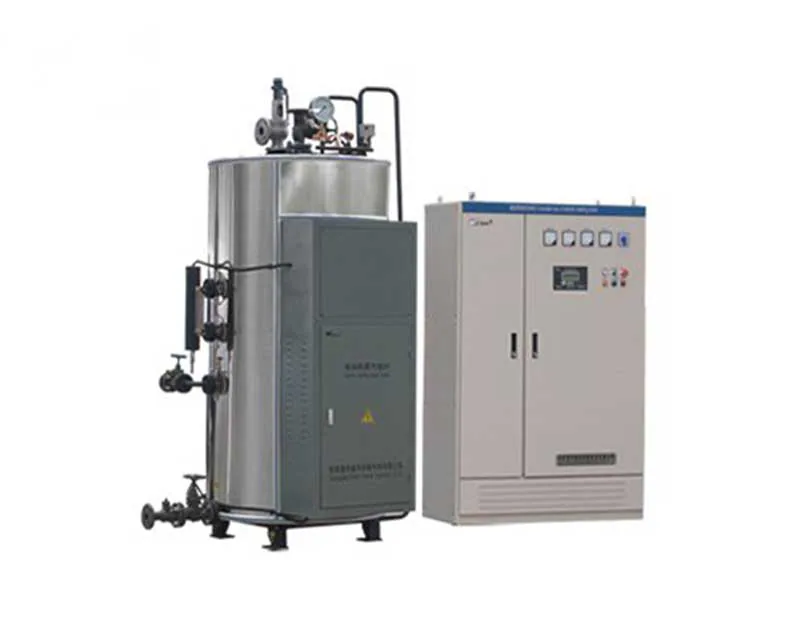

LDR Vertical Electric Steam Boiler

Name: LDR Vertical Electric Steam Boiler
Brand: Wilford

Steam for electric — 4 standard sizes.

Request a quotation →Parameters

Output: 0.15–0.5 t/h
Working pressure: 0.7–1 MPa
Standard sizes: 4
Fuel: Electric

Design

Vertical design electric steam boiler, the heating elements are completely submerged in water and completely insulated-high efficiency and minimum radiation losses.

Medium: Steam
Fuel: Electric
Output: 0.15–0.5 t/h
Working pressure: 0.7–1 MPa
Standard sizes: 4 · LDR0.15 – LDR0.5
Rated voltage: 3N AC 50Hz 380V

All electrical components with CE and UL marks –ensure safety and long life service.

After precision calculation&design, boiler could quickly and efficiently reach work pressure. Using low heat load surface heating elements– not easily melted or softened. Each component with water pressure and withstand voltage test. Boiler could immediately work after connecting to power and water supply. Nearly 100% thermal efficiency–quiet, clean, more in line with environmental requirements, No atmospheric emissions NOx (nitrogen oxides)

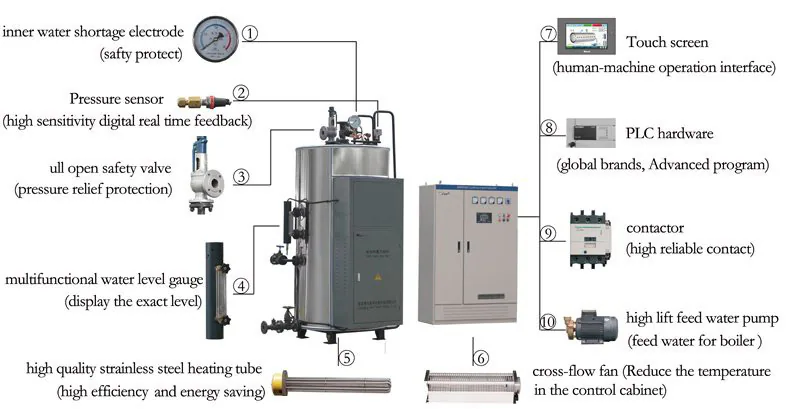

Features

Swipe →

01 / 07
All electrical components with CE and UL marks –ensure safety and long life service.
02 / 07
Quickly start and stop, big operation load adjusting range, easily handling.
03 / 07
Each heating element use a concentrated beam flange connection, independently arrangement, simple structure, high mechanical strength, safe, reliable, convenient replacement, long service life.
04 / 07
Flexible working methods, could set either manual or automatic mode.”
05 / 07
Unique power switching function, could be regulated based on actual demand of steam power, make same usage time/frequency, improve equipment service life.
06 / 07
When electric boiler heating element in a group has problem, could immediate stop operation the destroyed heating group and cut off power supply.”
07 / 07
Vertical structure, compact and beautiful, elegant style, classic color, save room space and easily installation.”

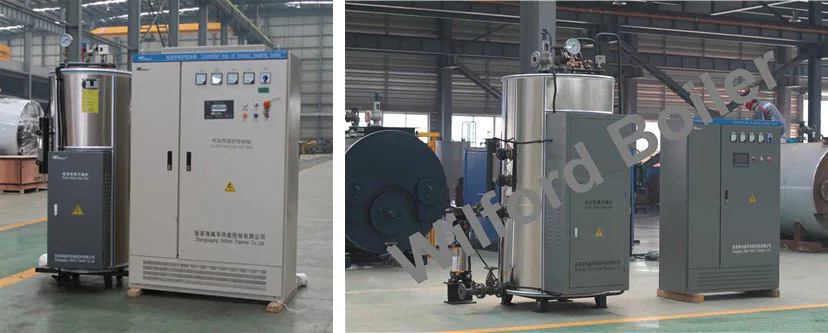

Gallery

LDR Vertical Electric Steam Boiler

6 images

Technical parameters

LDR series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LDR Vertical Electric Heating Steam Boiler

Type			LDR0.15	LDR0.2	LDR0.3	LDR0.5
Project		Unit	LDR0.15	LDR0.2	LDR0.3	LDR0.5
Rated evaporation		t/h	0.15	0.2	0.3	0.5
Rated working pressure		MPa	0.7/1.0	0.7/1.0	0.7/1.0	0.8/1.0
Saturated steam temperature		℃	170/193	170/193	170/193	170/193
Input Power		KW	108	144	216	360
Input current		A	162	216	324	540
Rated pressure		V	3N AC 50Hz 380V
Power×Group		KW×P	18×6	18×8/24×6	27×8	36×10
a Main steam valve diameter		DN	25	25	32	50
b Safety valve diameter		DN	25	25	25	40
c Inlet diameter		DN	15	15	25	25
d Blowoff Valve diameter		DN	25	25	40	40
Overall size	L	mm	1100	1150	1300	1450
	W	mm	950	950	1100	1350
	H	mm	1950	2000	2100	2300
Weight		kg	350	450	680	980
