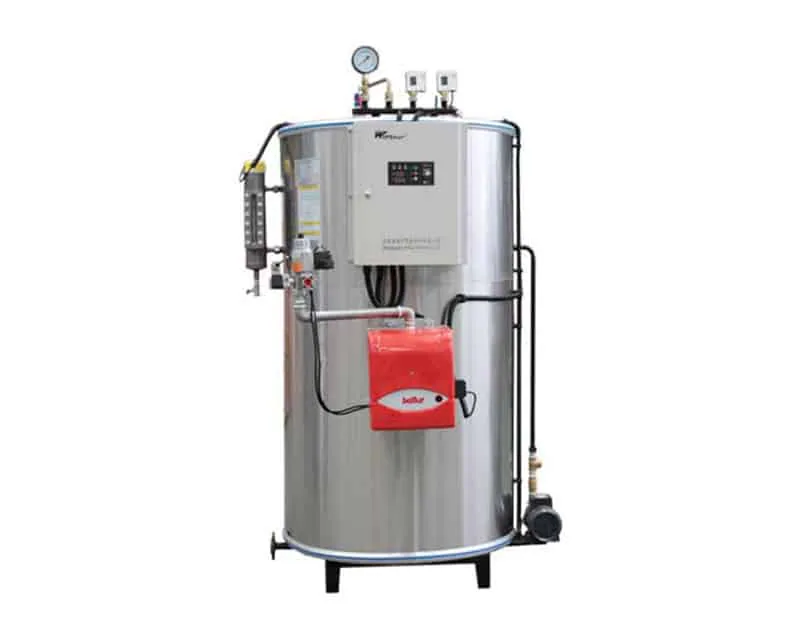

LWS Skid-Mounted Oil/Gas Steam Boiler

Name: LWS Skid-Mounted Oil/Gas Steam Boiler
Brand: Wilford

Steam for natural gas, diesel — 4 standard sizes.

Request a quotation →Parameters

Output: 100–300 kg/h
Working pressure: 0.7 MPa
Standard sizes: 4
Fuel: Natural gas · Diesel

Design

The LWS series use vertical furnace, no tubes, four-return structure.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 100–300 kg/h
Working pressure: 0.7 MPa
Standard sizes: 4 · LWS0.1 – LWS0.3
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry Feed, Package, Plywood, Building Material, Chemical, etc

This design effectively increases smoke heat transfer to boiler water, which improves thermal efficiency and is good at energy saving. No-pipe design can prevent the boiler from scaling and being damaged.

Features

Swipe →

01 / 06
Containing no water pipes or fire tubes, which is exempt from exploding of tubes.
02 / 06
Boiler will not burn down because of scaling, which reduces the maintenance cost.
03 / 06
The upper ring large steam room and separation measures for boiler and steam blow water can ensure the availability of high-quality steam.
04 / 06
Double W-shaped four -pass has big heat transfer coefficient and full heat exchange.
05 / 06
Low exhaust temperature, high thermal efficiency and long service life.
06 / 06
The vertical structure is compact and beautiful, which saves space and easy for installation.

Gallery

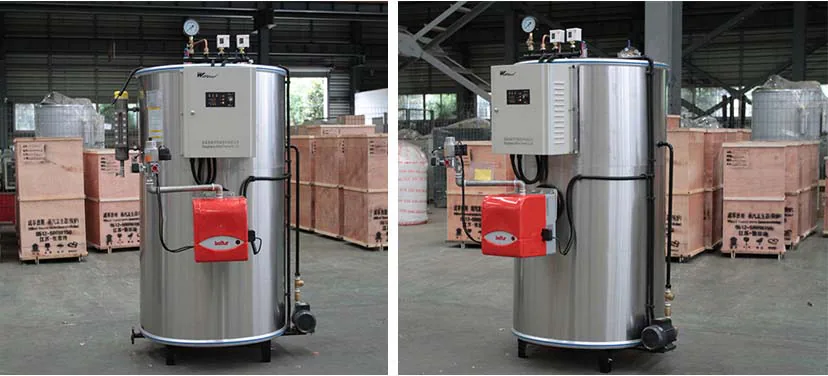

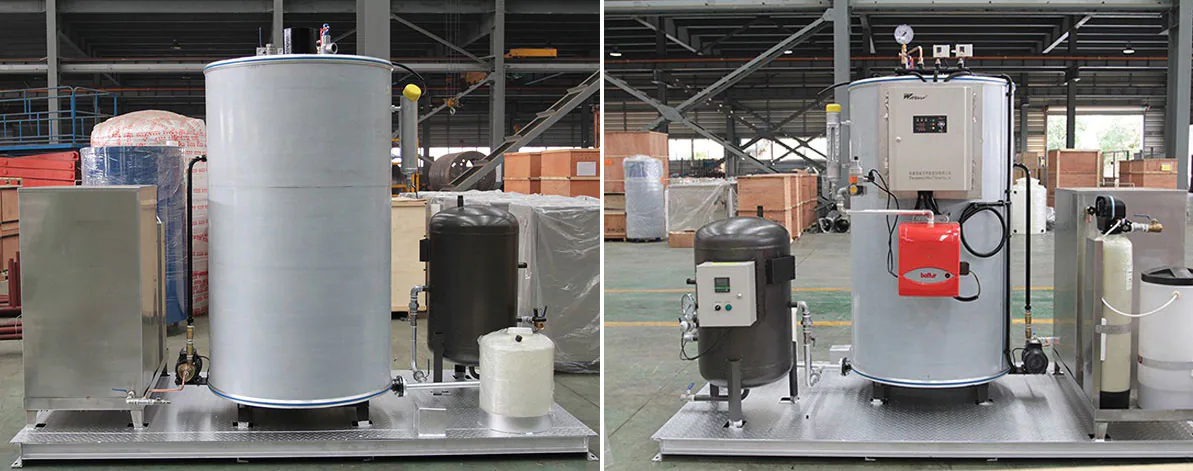

LWS Skid-Mounted Oil/Gas Steam Boiler

5 images

Technical parameters

LWS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LWS series skid-mounted boiler

Model			LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Item		unit	LWS0.1-0.7-Y.Q	LWS0.15-0.7-Y.Q	LWS0.2-0.7-Y.Q	LWS0.3-0.7-Y.Q
Rated evaporation		kg/h	100	150	200	300
Rated working pressure		MPa	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170
Feed water temperature		℃	20	20	20	20
Weight		T	0.6	0.68	0.8	1.1
Water capacity		L	49	190	220	280
Fuel consumption	Light diesel oil	Kg/h	6	9	12	18
	natural gas	Nm3/h	9.1	13.7	18.2	27.3
	LPG	L/h	14.2	21.3	28.4	42.5
a main steam valve		mm	25	25	32	32
b safety valve		mm	25	25	25	25
c water inlet		mm	15	15	15	15
d drain valve		mm	20	25	25	25
e chimney		mm	133	159	159	219
Overall size	L	mm	1020	1150	1150	1270
	W	mm	1080	1260	1260	1570
	H	mm	1750	1840	2140	2400
	H1	mm	1480	1520	1820	2090
