LSS Vertical Water-Tube Oil/Gas Steam Boiler

Name: LSS Vertical Water-Tube Oil/Gas Steam Boiler
Brand: Wilford

Steam for natural gas, diesel — 4 standard sizes.

Request a quotation →Parameters

LSS Vertical Water-Tube Oil/Gas Steam Boiler

Output: 0.5–2 t/h
Working pressure: 0.7–1.25 MPa
Standard sizes: 4
Fuel: Natural gas · Diesel

Design

LSS series products –water tube structure, vertical three return and burner on top design.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 0.5–2 t/h
Working pressure: 0.7–1.25 MPa
Standard sizes: 4

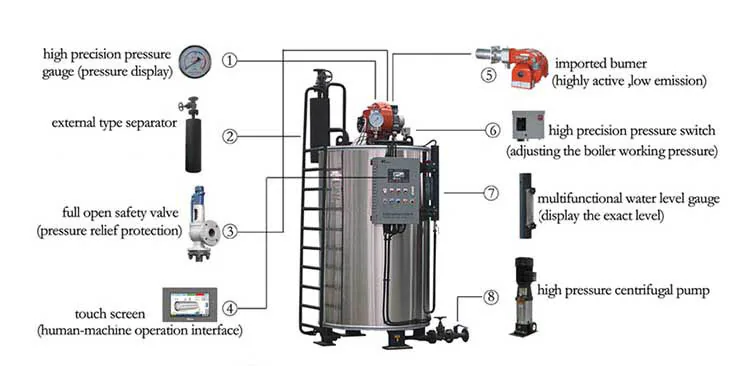

Quickly start up, achieving high temperature and pressure in short time. With multi chain protection for water level and steam pressure.

The fire from top to down, fully expanded. Flame processes long and in full combustion, each part of the flue gas go through three return for heat transfer, greatly reducing the exhaust gas temperature, save heat loss and improves thermal efficiency. The boiler has controller protection and automatic recovery of the contactor to prevent electric shock function. It also has dual anti reflux and exhaust heat protection devices, which, strengthen the safety function.

Nature circle, could undertake large temperature difference.

Features

01 / 01
Quickly start up, achieving high temperature and pressure in short time.

Gallery

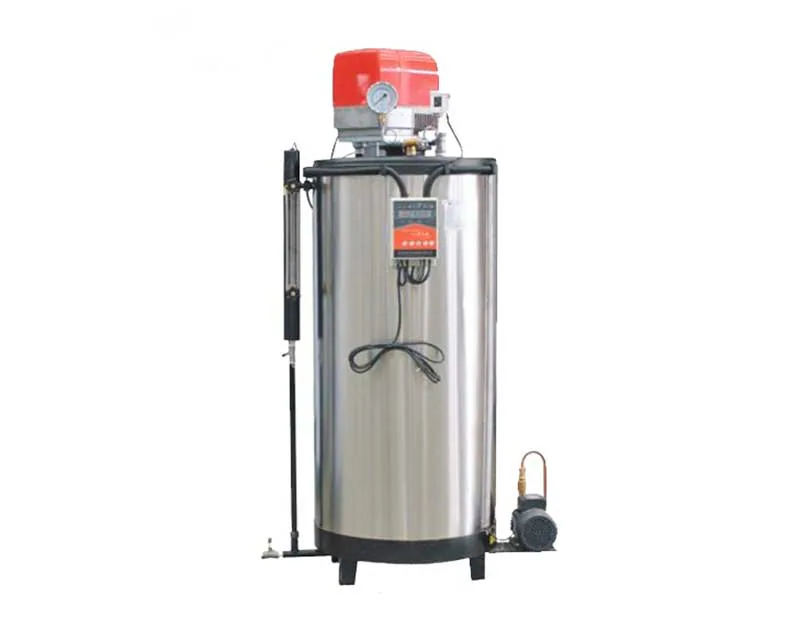

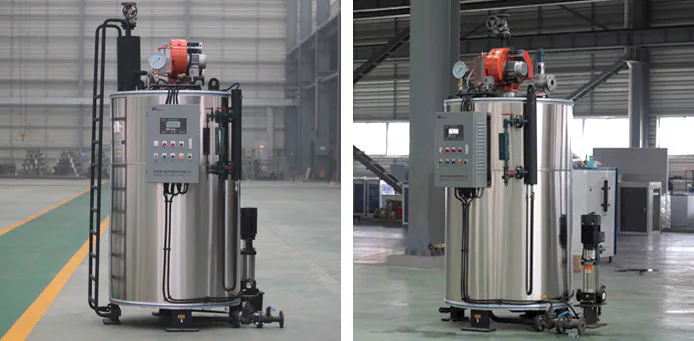

LSS Vertical Water-Tube Oil/Gas Steam Boiler

5 images

Technical parameters

LSS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LSS Vertical Oil (gas) Fired Steam Boiler

Type			LSS0.5	LHS1	LHS1.5	LHS2
Project		Unit	LSS0.5	LHS1	LHS1.5	LHS2
Rated evaporation		t/h	0.5	1	1.5	2
Rated working pressure		MPa	0.7/1.0	1.0/1.25	1.0/1.25	1.0/1.25
Saturated steam temperature		℃	170/193	184/193	184/193	184/193
Fuel consumption	Light diesel oil	kg/h	35	70	105	140
	Natural gas	Nm³/h	40	80	120	160
	LPG	Nm³/h	15	30	45	60
	City gas	Nm³/h	85	170	265	340
a Main steam valve diameter		DN	40	50	65	80
b Safety valve diameter		DN	40	50	50	40×2
c Inlet diameter		DN	25	25	32	40
d Blowoff Valve diameter		DN	25	40	40	40
e Chimney diameter		DN	250	350	400	500
Overall size	L	mm	1830	1980	2045	2550
	W	mm	1780	1980	2220	2780
	H	mm	2650	3080	3380	3620
	H1	mm	2100	2300	2650	2880
	φDiameter	mm	1180	1380	1680	1980
Weight		T	1.8/2.2	2.3/2.8	3.3/4	4.3/5.2
