Hot air · WDK series

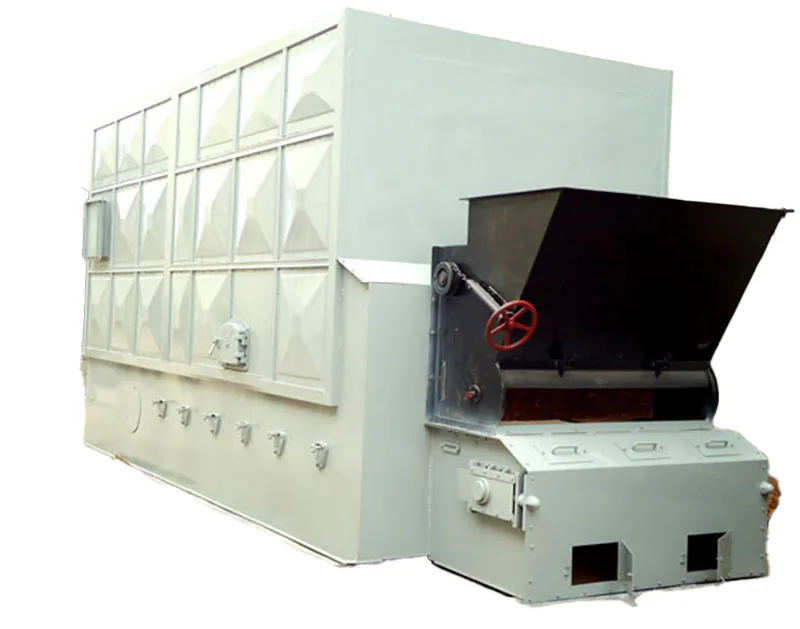

WDK Chain Grate Hot Blast Stove

Name: WDK Chain Grate Hot Blast Stove
Brand: Wilford

Hot air for biomass, coal — 11 standard sizes.

Request a quotation →Parameters

Standard sizes: 11
Fuel: Biomass · Coal

Design

Hot air for biomass, coal.

Medium: Hot air
Fuel: Biomass, Coal
Standard sizes: 11 · WDK40 – WDK350

Every standard size of the WDK series is listed in the parameter table below with output, pressure, fuel consumption, connections, dimensions and weight. Send your required output, pressure and fuel and we return a model selection, drawings and a quotation.

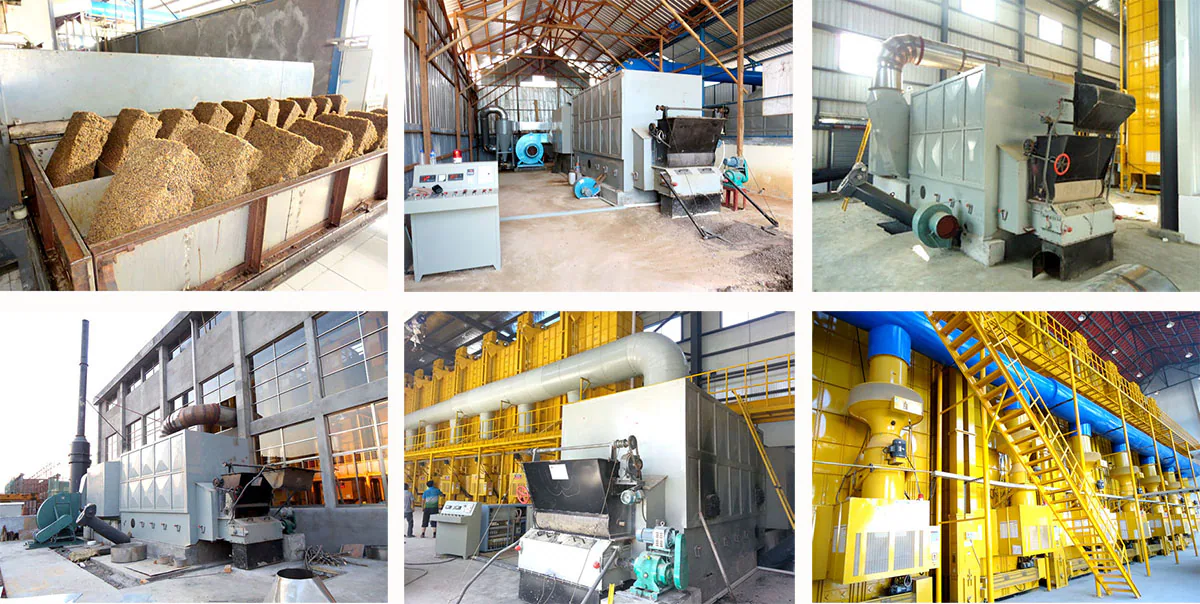

Gallery

WDK Chain Grate Hot Blast Stove

3 images

Technical parameters

WDK series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

Model	WDK40	WDK60	WDK80	WDK100	WDK120	WDK160	WDK180	WDK200	WDK240	WDK300	WDK350
Project	WDK40	WDK60	WDK80	WDK100	WDK120	WDK160	WDK180	WDK200	WDK240	WDK300	WDK350
Rated heating capacity(x10^6kj/h)	1.67	2.51	3.35	4.19	5.02	6.70	7.54	8.37	10.05	12.56	14.65
Rated coal consumption(kg/h)	97	145	194	242	291	388	436	485	582	727	848
Hot output air diameter(mm)	450	550	600	630	700	800	850	850	900	1000	1050
Output capacity of hot air m³/h	9727	14591	19455	24318	29181	38908	43773	48635	58362	73000	85113
Model	WDK400	WDK500	WDK600	WDK700	WDK800	WDK900	WDK1000	WDK1200	WDK1600	WDK2000	WDK2400
Project	WDK400	WDK500	WDK600	WDK700	WDK800	WDK900	WDK1000	WDK1200	WDK1600	WDK2000	WDK2400
Rated heating capacity(x10^6kj/h)	16.7	20.9	25.08	29.26	33.44	37.62	41.8	50.16	66.88	83.6	100.32
Rated coal consumption(kg/h)	970	1212	1454	1697	1939	2182	2424	2909	3879	4848	5818
Hot output air diameter(mm)	1300	1500	1550	1700	1840	2000	2100	2300	2800	3200	3500
Output capacity of hot air m3/h	97300	121800	146000	170000	194600	219100	243600	291800	389000	486500	583600
Design thermal efficiency(%)	WDK type: ≥ 74–75; ZDK type: ≥ 88–90
Hot air temperature°C	ZDK≥1100°C, WDK350°C (Special design highest650°C )
Fuel type	Bituminous coalII》5000kcal/kg)
Exhaust gas temperature(°C)	≤160–200 (Depending on fuel and working temperature)
