Steam · LSS series

LSS Inspection-Free Oil/Gas Steam Generator

Name: LSS Inspection-Free Oil/Gas Steam Generator
Brand: Wilford

Steam for natural gas, diesel — 7 standard sizes.

Request a quotation →Parameters

LSS Inspection-Free Oil/Gas Steam Generator

Output: 50–500 kg/h
Working pressure: 0.7 MPa
Standard sizes: 7
Fuel: Natural gas · Diesel

Design

On-site installation is convenient and can be used quickly.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 50–500 kg/h
Working pressure: 0.7 MPa
Standard sizes: 7 · LSS0.05 – LSS0.5
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

The corresponding boiler parameters can be customized according to customer requirements.

Features

Swipe →

01 / 07

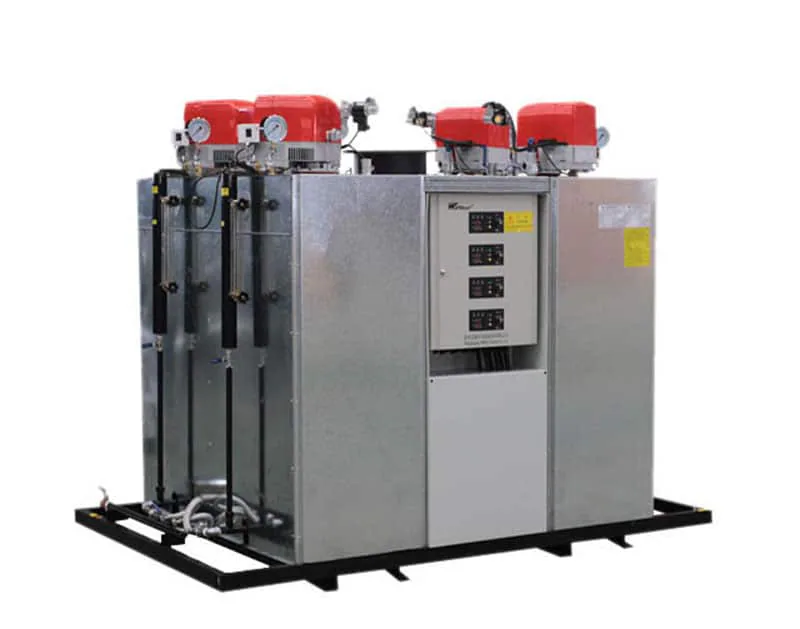

LSS series oil / gas fired steam boiler adopts Fully skid-mounted design to concentrate steam supply.
02 / 07
It can realize single independent control or centralized unified control, free of installation design.
03 / 07
The method of installing the boiler and all accessories on a base.
04 / 07
The entire production and assembly process is done in the factory.
05 / 07
On-site installation is convenient and can be used quickly.
06 / 07
Compact structure and easy migration.
07 / 07
The corresponding boiler parameters can be customized according to customer requirements.

Gallery

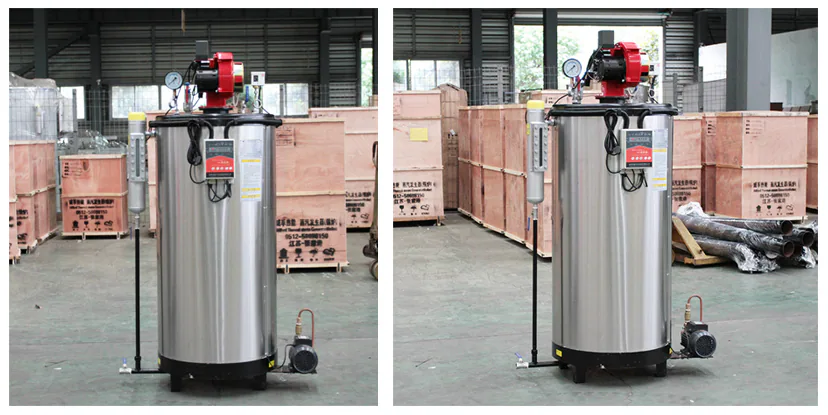

LSS Inspection-Free Oil/Gas Steam Generator

4 images

Technical parameters

LSS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

LSS National inspection-free oil(gas )steam generator

Model			LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Project		Unit	LSS0.05-0.7-Y.Q	LSS0.1-0.7-Y.Q	LSS0.125-0.7-Y.Q	LSS0.2-0.7-Y.Q	LSS0.25-0.7-Y.Q	LSS0.3-0.7-Y.Q	LSS0.5-0.7-Y.Q
Rated evaporation		Kg/h	50	100	125	200	250	300	500
Rated working pressure		MPa	0.7	0.7	0.7	0.7	0.7	0.7	0.7
Saturated steam temperature		℃	170	170	170	170	170	170	170
Fuel consumption	Light diesel oil	kg/h	3.5	6.8	8.5	14	16	20	33
	Natural gas	Nm³/h	3.5	7.3	9.2	14.5	19	22	36.5
	LPG	Nm³/h	3.3	5.7	7.2	11.4	7.5	17.3	28.7
	City gas	Nm³/h	8.5	18	22.5	34	43	52	88
Water capacity		L	29	49.3	49.3	49.5	49.5	49.5	49.6
a Main steam valve diameter		DN	15	25	25	32	32	32	50
b Safety valve diameter		DN	20	20	20	25	25	25	40
c Inlet diameter		DN	15	15	15	15	15	15	15
d Blowoff Valve diameter		DN	20	20	20	25	25	25	25
Chimney diameter		DN	80	125	125	150	150	150	250
Overall size	L	mm	820	880	900	1400	1500	1500	1800
	W	mm	890	1100	1150	1000	1100	1200	1300
	H	mm	1600	1800	1900	1000	2200	2200	2350
Weight		kg	180	220	240	850	1150	1200	1680
