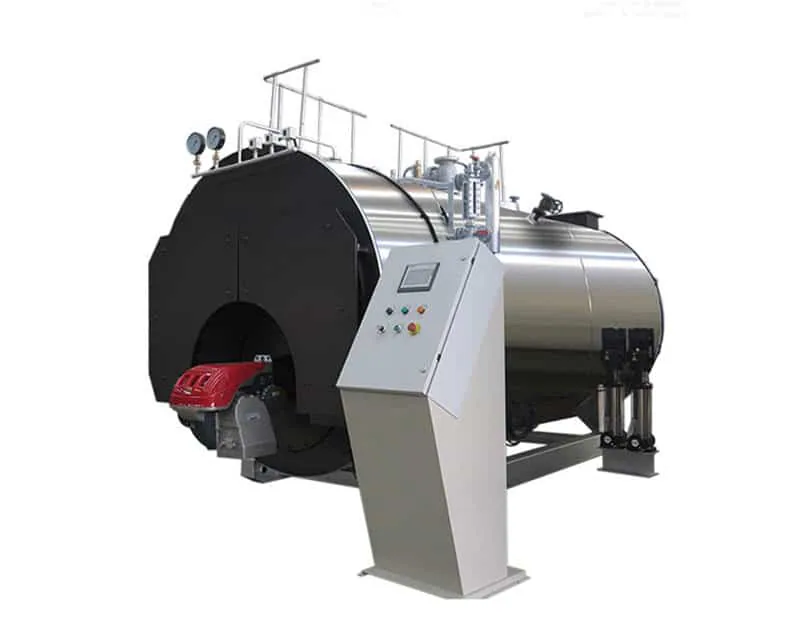

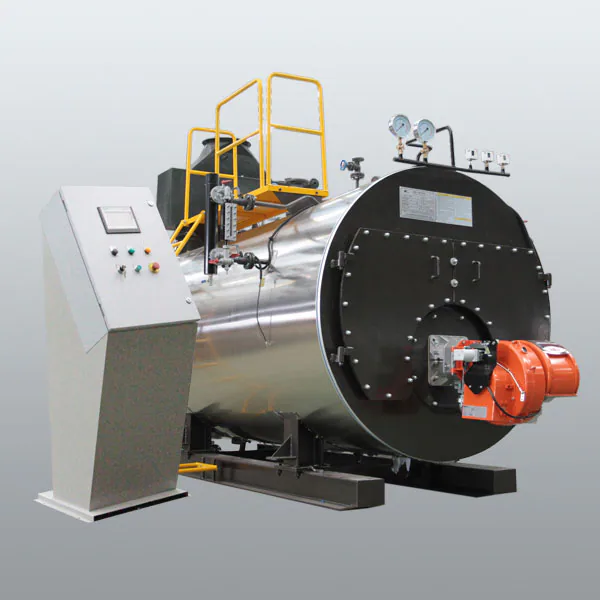

WNS Oil/Gas Fired Steam Boiler

Name: WNS Oil/Gas Fired Steam Boiler
Brand: Wilford

Steam for natural gas, diesel — 12 standard sizes.

Request a quotation →Parameters

Output: 0.5–20 t/h
Working pressure: 0.7–1.25 MPa
Standard sizes: 12
Fuel: Natural gas · Diesel

Design

Horizontal oil/gas fired steam boilers use international most mature three-pass all wet back structure, safety and reliable.

Medium: Steam
Fuel: Natural gas / LPG, Diesel / heavy oil
Output: 0.5–20 t/h
Working pressure: 0.7–1.25 MPa
Standard sizes: 12 · WNS0.5 – WNS20
Industry: Foods, Garment, Textile, Paper, Brewery, Rice mill, Dairy Products, Laundry, Poultry feed, Package, Plywood, Building material, Chemical, etc

Use waveform furnace, strengthens the disturbance of the smoke and increases the radiation heat transfer area ;increases the stiffness of the furnace and effectively reduces the thermal stress of the furnace; enhance heat transfer and promote the combustion of fuel in the furnace. The heating surface is arranged symmetrically with solid structural strength and reasonable water circulation. Boiler up part inside has full water capacity, big steam space and good quality steam. During procession, the water level fluctuation is small. Big distance between two ends boiler, big diameter of tubes, all of these ensure good natural circulation. Steam boiler with very small heat loss because of unique furnace and flue gas thermal surface design.

Features

Swipe →

01 / 06
Pre purge function, improve the working conditions of the burner and prolong the service life.
02 / 06
The unique design of the combustion chamber, increasing the radiation heating furnace area, shrinking the size of boiler, reducing NOx emissions.
03 / 06
Two ends smoke box multi-level sealed to avoid smoke leakage.
04 / 06
Large steam room and high quality steam.
05 / 06
Aboved horizontal structure boiler, with adequate heating area, full heat transfer, stable operating under load revise, high combustion efficiency.
06 / 06
Boiler furnace located at low position, ensurethe safety range of the water level. Big steam evaporation surface, high quality steam

Gallery

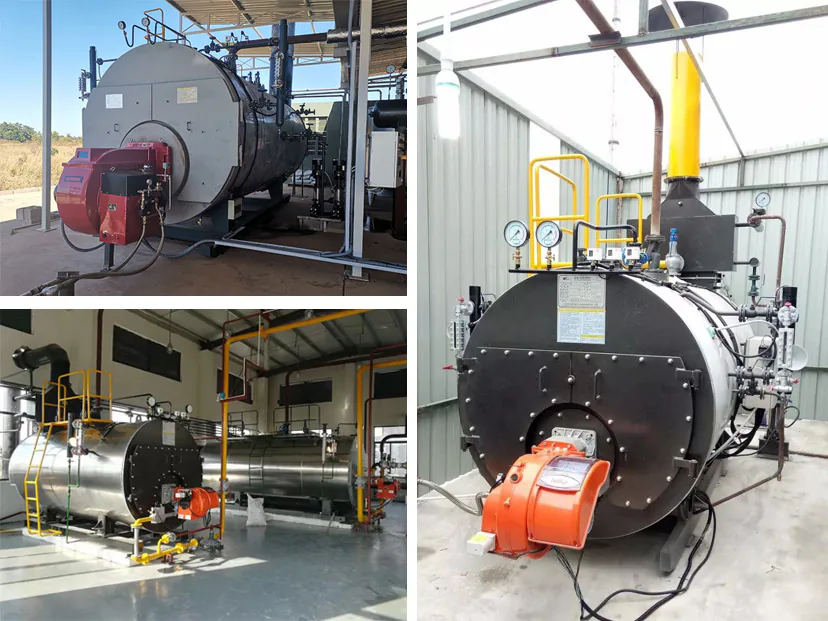

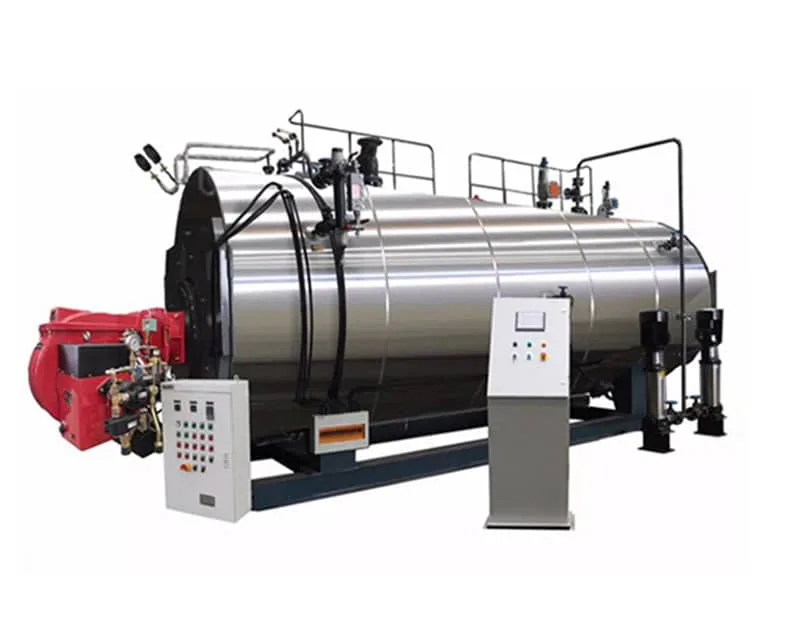

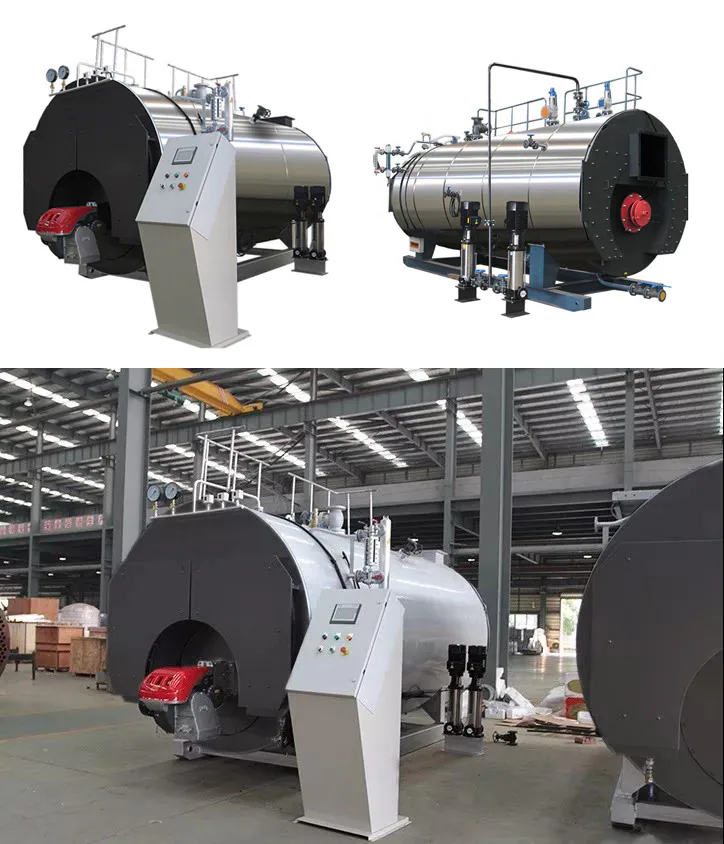

WNS Oil/Gas Fired Steam Boiler

6 images

Technical parameters

WNS series

Every standard size with output, pressure, fuel consumption, connections, dimensions and weight. Boilers are built to order — the quotation confirms the final figures.

Ask for drawings →

Swipe the table for all sizes

WNS Horizontal Oil(gas) Fired Steam Boiler

Model			WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10	WNS12	WNS15	WNS20
Item		unit	WNS0.5	WNS1	WNS1.5	WNS2	WNS3	WNS4	WNS6	WNS8	WNS10	WNS12	WNS15	WNS20
Rated evaporation		T/h	0.5	1	1.5	2	3	4	6	8	10	12	15	20
Rated working pressure		MPa	0.7	1	1	1	1	1.25	1.25	1.25	1.25	1.25	1.25	1.25
Saturated steam temperature		℃	170	184	184	184	184	193	193	193	193	193	193	193
Weight		T	3.2	4.6	5.6	6.8	7.9	11.5	15.5	18.4	23	30.1	36.5	49.5
Fuel consumption	diesel oil	Kg/h	30	60	90	120	180	240	360	480	600	720	900	1200
	natural gas	Nm3/h	38.9	76.8	119.8	151.5	229.6	310.6	449	614	766	921	1140	1525
	LPG	L/h	60.6	119.7	186.7	236.1	357.8	484	699	957	1194	1435	1777	2377
a main steam valve		mm	50	65	65	80	80	100	125	150	150	200	200	250
b safety valve		mm	40	50	50	40×2	50×2	50×2	65×2	65×2	80×2	80×2	80×2	80×2
c water inlet		mm	25	25	25	40	40	40	40	50	50	65	65	80
d drain valve		mm	40	40	50	50	50	50	50	50	50	65	65	65
e chimney		mm	250	300	350	400	450	500	600	650	750	1000	1000	1250
Overall size	L	mm	3150	4080	4720	5220	5600	6500	7470	7950	8600	8740	10730	11250
	W	mm	2150	2660	2610	2980	3120	3280	3000	3200	3400	7450	8110	8360
	H	mm	2820	3050	3420	3320	3420	3650	4070	4100	4300	3475	3850	4395
Transportation size	L1	mm	2600	3280	3610	4020	4350	5250	6120	6700	7350	2700	2950	3250
	W1	mm	1550	2060	1900	2040	2130	2240	2400	2600	2800	4050	4210	4650
	H1	mm	1870	2230	2165	2430	2430	2750	3100	3070	3470	3280	3510	3820
